MODEL | FS810
SIZE | 8.5′ X 24′
NO. STATIONS | 10
WASTE SIZE | 840 GAL
WASTE TANK | COPOLY
SANITATION SERIES RESTROOM TRAILERS
| FS62 | Two-Station Restroom Trailer

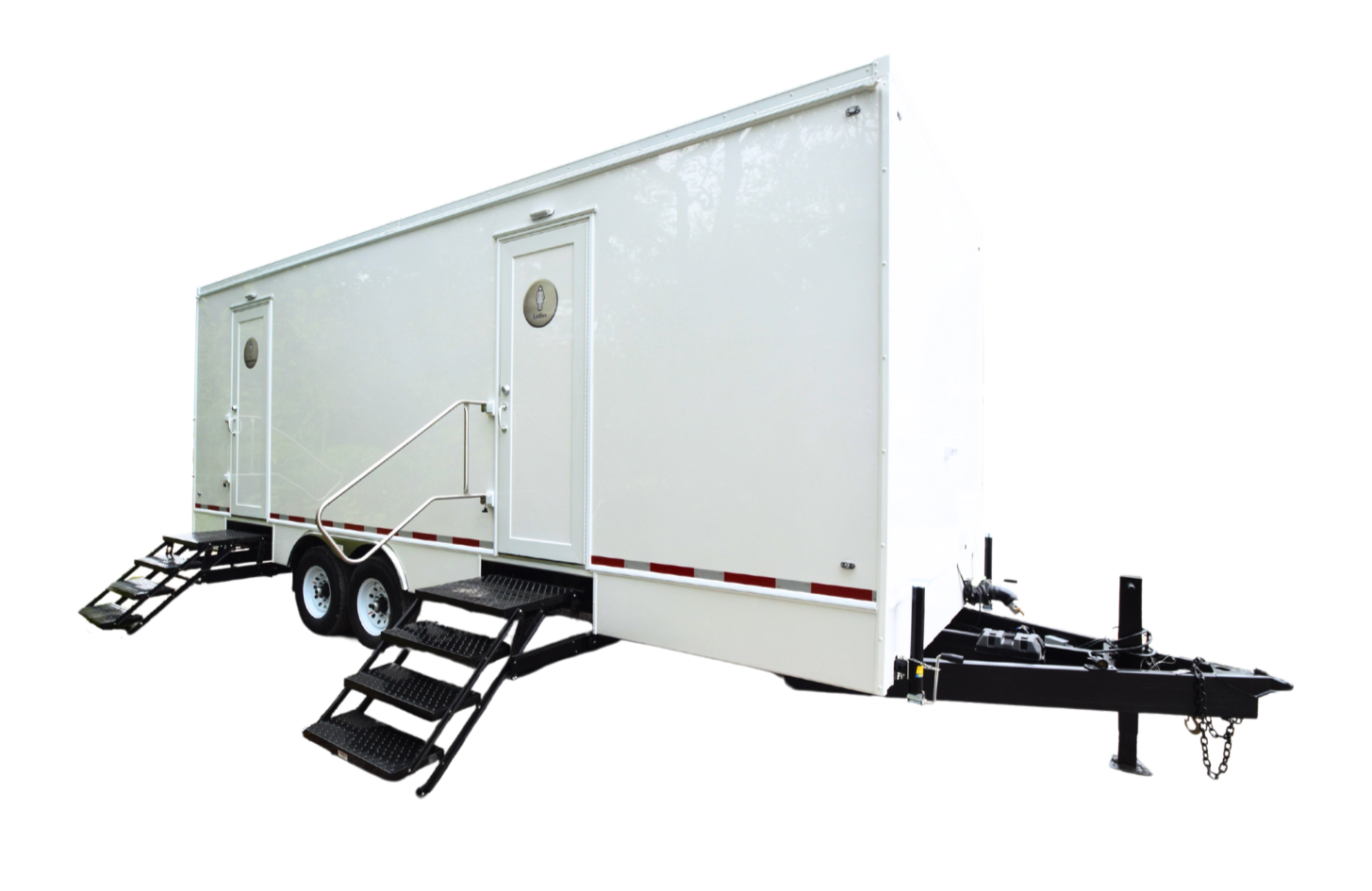

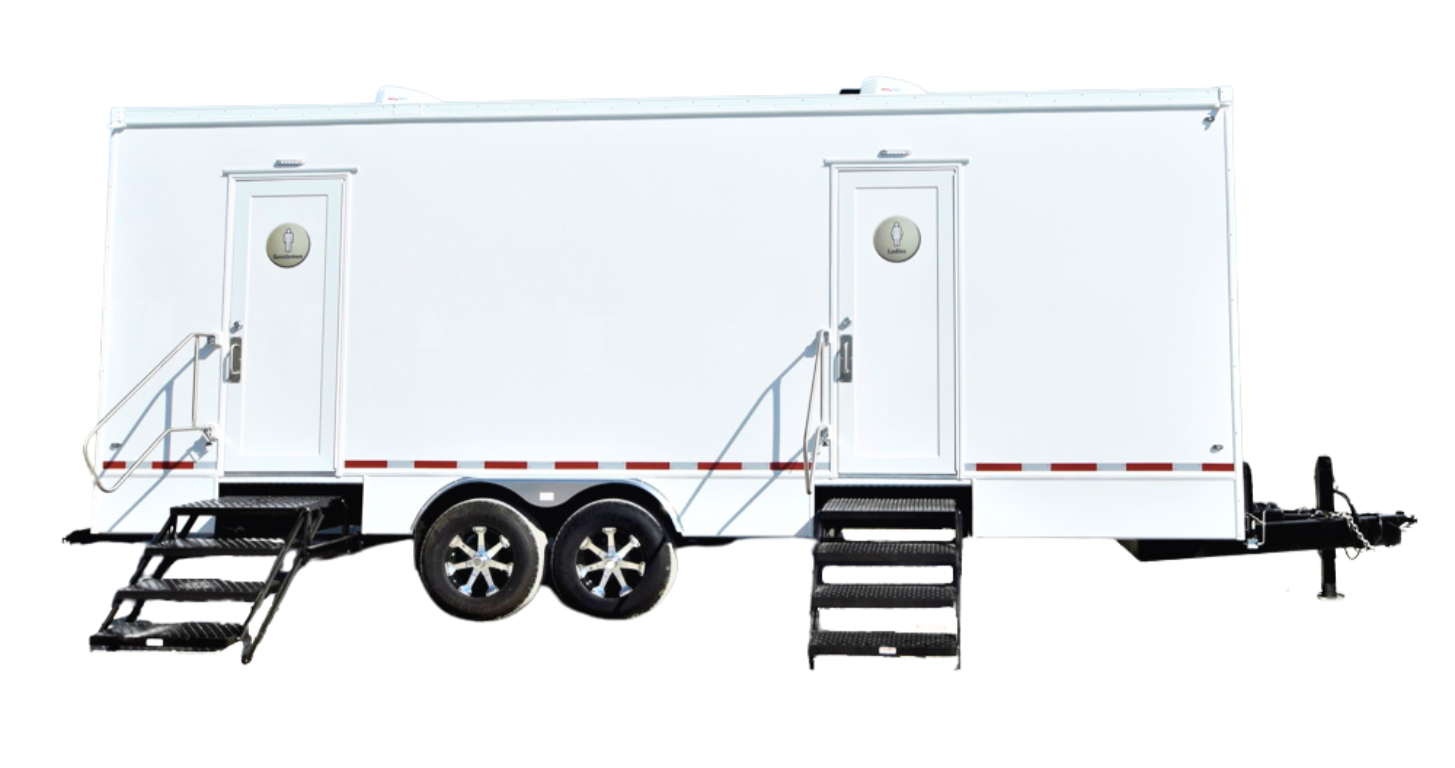

FS810 10‑Station Restroom Trailer
The FS810 10‑Station Restroom Trailer provides a dependable solution for large events that require high‑capacity restrooms. Additionally, its versatile décor packages allow the trailer to match corporate gatherings, golf tournaments, public auctions, and fairground events. Furthermore, the model performs well at rugged locations such as man camps, thanks to durable interior options. As a result, the FS810 delivers an upscale restroom experience that handles heavy traffic with ease.
Each FS810 features a high‑end gelcoat fiberglass exterior that maintains a polished, easy‑to‑clean appearance. Moreover, the one‑piece fiberglass sheathing increases structural strength and supports company graphics or custom paint. In addition, triple‑sealed corners and tightly fitted trim help prevent leaks and protect the trailer from weather changes. The composite and fiberglass roof also resists hail and other environmental damage, ensuring long‑lasting performance.
Key Features
The FS810 10‑Station Restroom Trailer includes several features designed to improve durability and comfort. Additionally, its water‑resistant construction protects the unit from weather and daily wear. Floors, sidewalls, and the roof use composite materials reinforced with aluminum for added strength. Furthermore, mar‑resistant and waterproof interior walls increase resilience in demanding environments. Contemporary color options also create a welcoming, professional look suitable for many event styles. As a result, the FS810 offers a reliable, attractive, and long‑lasting restroom solution for both upscale venues and rugged job sites.
FS810 | 10-Station Specifications
- Number of Stations: 10
- Length | w/Tongue: 24′ | 29′
- Width: 8.5’
- Height w/AC: 11’8″
- Optional Freshwater: 150/200 gal
- Wastewater: 840 gal
- Weight: 9,880 lbs
- Axle: Tandem

Sample Construction Cut Away
KEY FEATURES
FIBERGLASS EXTERIOR WALLS
DURABUILT COMPOSITE FIBERGLASS ROOF
ALUMINUM STUDDING 16” O.C. OR BETTER
ALUMINUM ROOF TRUSSES 12” O.C.
OVERSIZED 12” I-BEAM CHASSIS
CO-POLY WASTE HOLDING TANK
WATERPROOF INTERIOR WALLS
COMPOSITE BASE CABINETS PER DÉCOR*
